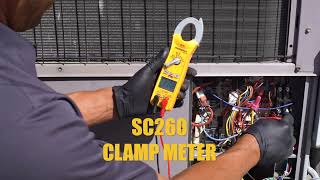

SC260 – Compact Clamp Meter with True RMS

Not just for small jobs.

Where to Buy

  • True RMS
  • Volts AC/DC
  • Capacitance
  • Temperature
  • Bright backlight
  • Sturdy magnet

Compact clamp meter that’s big on features.

If you need to test HVACR electrical measurements, pick up an SC260. It’s designed with the HVACR professional in mind. Are you working on a small residential system? The SC260 is perfect. Working on large commercial units? The SC260 brings everything you need.

Designed for HVACR pros.

We were the first company dedicated to creating meters specifically for HVACR professionals. That’s why the SC260 includes True RMS measurements. It also measures temperature in Fahrenheit and Celsius. Its backlight display helps you read measurements in poorly lit places, and its sturdy swivel magnet makes hands-free measurements a breeze.

Innovation after innovation.

Need to save time? Use the Auto Select mode that automatically chooses the appropriate measurement depending if you’re reading ohm, continuity, diode or MFD. This meter handles the transition from a cold freezer to a hot rooftop without effecting temperature measurement accuracy.

Here are some of the SC260’s best features:

  • Volts AC/DC
  • True RMS
  • 400 amps AC
  • Temperature F/C
  • Capacitance
  • Non-contact voltage
  • 40 mega ohm with 0.01 resolution
  • Continuity
  • Diode test
  • Max/Min/Hold
  • LCD backlight
  • Low battery indicator
  • Hi-voltage warning

What’s Included:

  • (1) SC260 Meter
  • (2) ADLS2 Deluxe Silicone Lead Set with Gold Plated Tips and Removable Sheath
  • (1) ATB1 Wrap Tab Type K Thermocouple
  • (2) Molex Tips
  • (1) Velcro Strap
  • (1) 9V Battery
  • (1) ANC4 Padded Case

Read More

Specifications User Manuals Print Material FAQs

Want to pick one up? Start here.

Where To Buy

SC260 – Compact Clamp Meter with True RMS

Not just for small jobs.

  • True RMS
  • Volts AC/DC
  • Capacitance
  • Temperature
  • Bright backlight
  • Sturdy magnet

Compact clamp meter that’s big on features.

If you need to test HVACR electrical measurements, pick up an SC260. It’s designed with the HVACR professional in mind. Are you working on a small residential system? The SC260 is perfect. Working on large commercial units? The SC260 brings everything you need.

Designed for HVACR pros.

We were the first company dedicated to creating meters specifically for HVACR professionals. That’s why the SC260 includes True RMS measurements. It also measures temperature in Fahrenheit and Celsius. Its backlight display helps you read measurements in poorly lit places, and its sturdy swivel magnet makes hands-free measurements a breeze.

Innovation after innovation.

Need to save time? Use the Auto Select mode that automatically chooses the appropriate measurement depending if you’re reading ohm, continuity, diode or MFD. This meter handles the transition from a cold freezer to a hot rooftop without effecting temperature measurement accuracy.

Here are some of the SC260’s best features:

  • Volts AC/DC
  • True RMS
  • 400 amps AC
  • Temperature F/C
  • Capacitance
  • Non-contact voltage
  • 40 mega ohm with 0.01 resolution
  • Continuity
  • Diode test
  • Max/Min/Hold
  • LCD backlight
  • Low battery indicator
  • Hi-voltage warning

What’s Included:

  • (1) SC260 Meter
  • (2) ADLS2 Deluxe Silicone Lead Set with Gold Plated Tips and Removable Sheath
  • (1) ATB1 Wrap Tab Type K Thermocouple
  • (2) Molex Tips
  • (1) Velcro Strap
  • (1) 9V Battery
  • (1) ANC4 Padded Case

Specifications

  • Display: 4000 count
  • Backlight: 5 minute duration with auto-off. Blue color. SC260 only
  • Overrange: (OL) or (-OL) is displayed
  • Measurement rate: 3 times per second, nominal
  • Zero: Automatic
  • Operating environment: 32°F to 122°F (0°C to 50°C) at <70% relative humidity
  • Storage temperature: -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with battery removed)
  • Accuracy: Stated accuracy @ 73°F±9°F (23°C±5°C), <75%RH
  • Temperature coefficient: 0.1 x (specified accuracy) per °C [0°C to 19°C (32°F to 66°F), 28°C to 50° C(82°F to 122°F)]
  • APO (Auto Power Off): Approx. 30 minutes
  • Power: 9V, NEDA 1604A, IEC 6LR61 9V alkaline battery
  • Battery life: 200 hours typical alkaline (SC220/SC240); 150 hours typical alkaline (SC260)
  • Low battery indication: Battery icon blinks and “LO.bt” is displayed when the battery voltage drops below the operating level
  • Dimensions: 205.5mm(H) x 67.4mm(W) x 45.1mm(D)
  • Weight: Approx. 265g including battery
  • Altitude: Up to 6562 ft (2000m)
  • Overload protection: 600 VDC or 600VAC rms unless otherwise stated
  • Test leads: Use UL listed test leads that comply to UL61010-031 rated CATIII 600V or above
  • Included test leads are gold- plated and have removeable safety caps
  • Does it have a fuse I can change?

    • No, the new meters do not use a fuse anymore. They use a PTC as it is faster and safer for the technician.

  • What does diSC mean?

    • If dISC is displayed, the capacitor is not discharged completely.

  • Can I use the min max to determine my inrush current?

    • No, the min/max button is not the same as inrush as it does not capture readings fast enough.

  • What is NCV?

    • Use NCV to check for 24VAC from a thermostat or live voltage up to 600VAC. Always test on a known live source before using. A three segment graph and RED LED will display the presence of voltage. The audible beep increases from intermittent to continuous as intensity of field (EF) increases.


^
