If you’ve ever enjoyed the cool breeze of an air conditioner on a hot day or relied on a furnace to keep you warm in winter, you’ve benefited from the careful work of HVAC professionals and the specialized tools they use. One of those essential tools is the HVAC vacuum pump. Before a heating or cooling system can be filled with refrigerant and put to work, it needs to be completely free of air, moisture, and other contaminants. That’s where the vacuum pump comes in.
This powerful tool creates a deep vacuum that clears out the system, ensuring it is primed for charging with refrigerant and runs efficiently, reliably, and safely from day one. Whether you’re installing a brand-new unit or servicing an existing one, the vacuum pump plays a critical role in keeping everything running smoothly.
An HVAC vacuum pump is a device used to remove air, moisture, and other contaminants from a refrigeration or air conditioning system before it’s charged with refrigerant. They may be used when the HVAC system is installed or repaired. These unwanted contaminants can cause system inefficiencies, corrosion, or even total failure if not properly evacuated. When pulling a vacuum, these contaminants can be pulled and exhausted through your vacuum pump’s oil, making frequent oil changes an essential step in vacuum efficiency and effectiveness.
Primarily, moisture inside a system mixes with oil to create an acid which corrodes system components, and in rare cases can freeze to cause blockages. Air in a system can lead to poor heat transfer and increased pressure which leads to higher energy consumption, and can even lead to permanent damage to the HVAC system. A vacuum pump can also help uncover leaks if an adequate vacuum level cannot be achieved. This ensures that your HVAC system can properly hold refrigerant, a key environmental concern. Vacuuming is also important in ensuring the longevity of a system, as it helps to remove any non-condensable gases that could be harmful to the system or its components. Overall, a high-quality vacuum pump ensures the system is clean, dry, and ready to perform at peak efficiency.
The first step is connecting the pump to the HVAC’s refrigerant lines, usually through a manifold or directly to the vacuum pump. The vacuum pump creates a deep vacuum within itself, and when connected to the system via vacuum rated hoses, creates a pressure differential between the system and the vacuum pump. In turn, the higher pressure on the system side will push out air, moisture, and other non-condensable gases through the hoses and out the exhaust of the vacuum pump. Once a deep vacuum is achieved—typically 500 microns or lower—the system is ready for refrigerant charging.

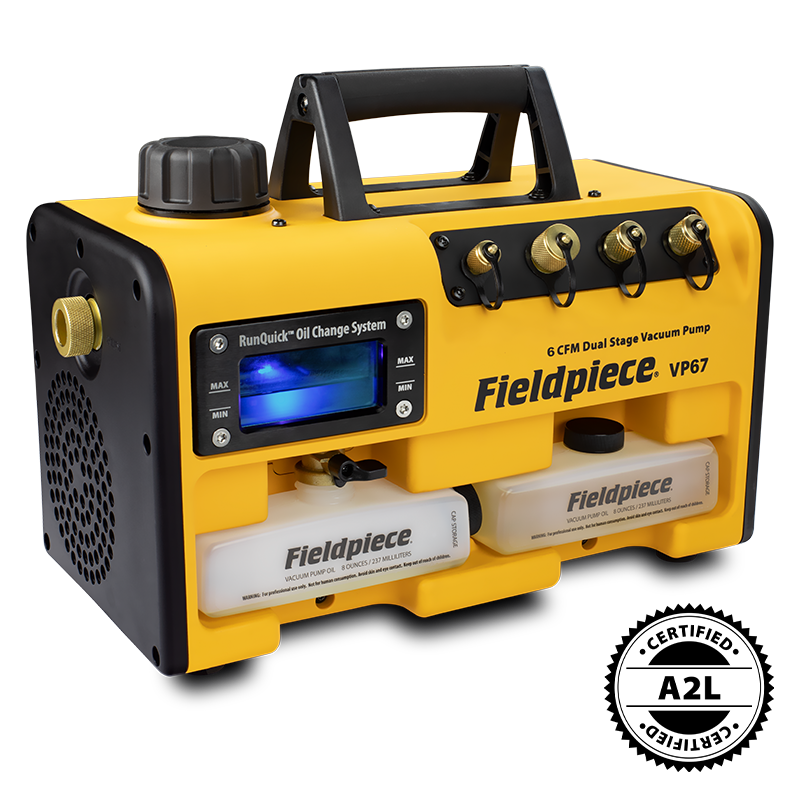

At Fieldpiece, our HVAC vacuum pumps are built with powerful motors, rugged construction, and intuitive design features that make fieldwork faster and more efficient. We strive to provide the best options possible, so we offer the latest in HVAC vacuum pump technology. These powerhouses will cut the evacuation time in half, so you can get more jobs completed in a single day. All our systems offer a simple oil change that makes these systems user-friendly and reliable, featuring the RunQuick Oil Change System. Our primary goal is to help you get the job done right, every time.
An HVAC vacuum pump may not be the most talked-about tool in the industry, but it’s one of the most critical for system performance and longevity. By thoroughly removing air, moisture, and contaminants before refrigerant is added, a vacuum pump helps ensure that HVAC systems operate at their best—efficiently, safely, and reliably.
For technicians, using a dependable vacuum pump isn’t just a step in the process—it’s a professional standard. And when it comes to choosing the right one, Fieldpiece offers powerful, easy-to-use vacuum pumps designed to meet the demands of real-world service work. From fast evacuation times to quick oil changes and rugged durability, Fieldpiece pumps are built to help you work smarter and more effectively.
